Archival Digitisation Services

At NCAP, we have one of the largest suites of photogrammetric imaging systems in the world. Combined with the skills of our expert staff, this range of precision equipment allows us to deliver the highest quality image services, tailored to meet client requirements.

Each machine can capture and digitise to incredible levels of accuracy, delivering ultra-high resolution digital images to allow our customers to generate extremely accurate datasets.

Visit our Contact Us page if you’d like to get in touch to discuss your digitisation requirements.

Equipment

The NCAP facility is located in Edinburgh, Scotland. Our imaging suites are environmentally controlled to create a safe, dust-free environment for handling and digitising archival film and print material. Our Preservation Team ensures all archival material is safely and appropriately prepared before digitisation.

On site, we have a variety of photogrammetric scanning workstations. All our workstations are serviced annually to ensure they operate at full performance. They are maintained by official service engineers and calibrated regularly. Customers can be supplied with this data when ordering images from us.

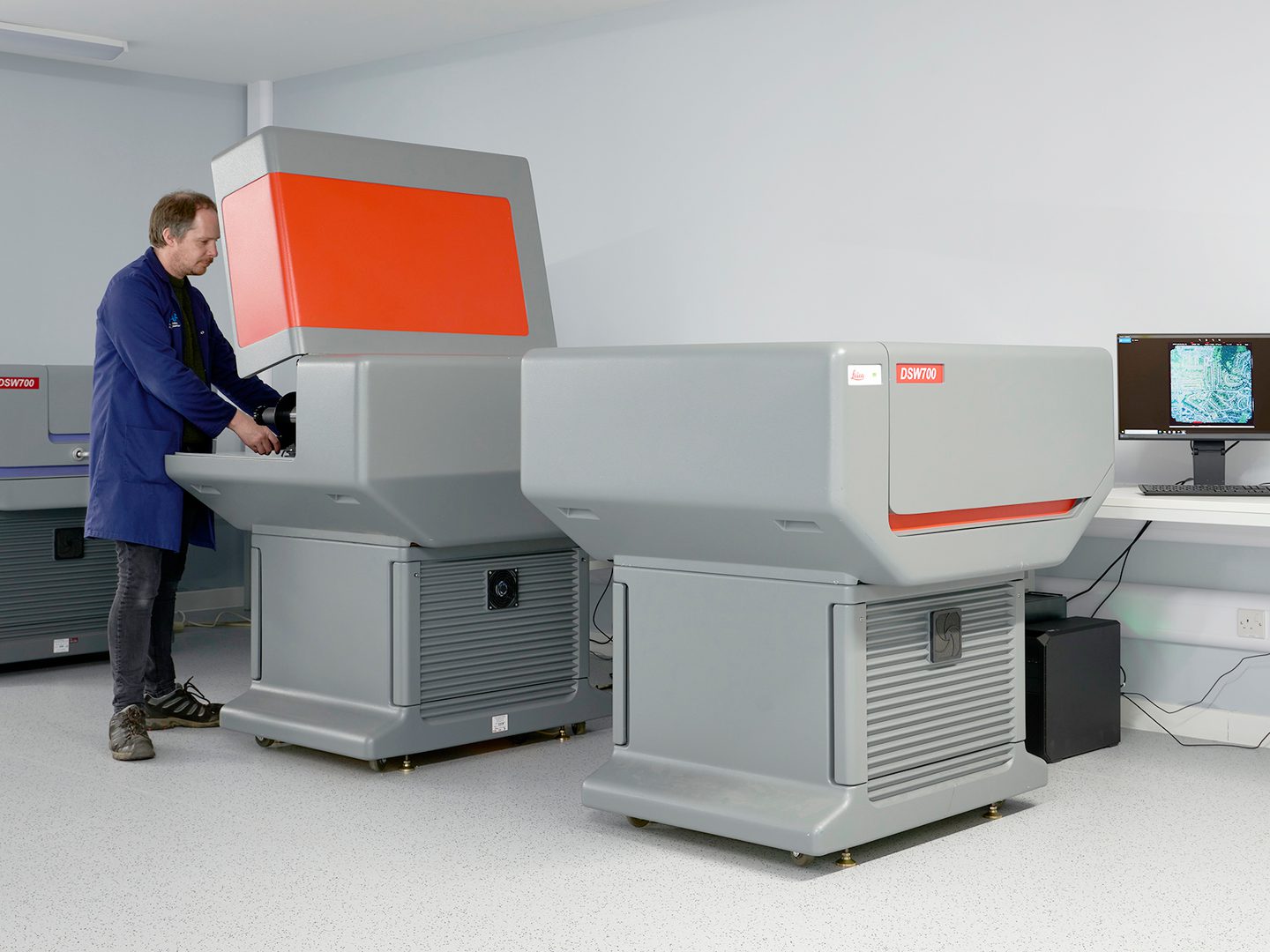

Leica DSW700

Our Leica workstation is a high-precision, high speed automated scanner for the digitisation of aerial film. The employment of high-resolution sensors enable the DSW700 to capture image data at high speed, with consistently high fidelity. It can scan a range of film types, including greyscale, colour and false colour, film negatives and diapositives.

NCAP operates 9 Leica workstations.

Suitable For Scanning

  • Modern aerial film

Images Produced For

  • Map making
  • Geographic software
  • Land change exploration
Specifications
Optical resolution Up to 10μm
Scan area 260mm x 260mm
Geometric RMS range Better than 2μm
Leica DSW700

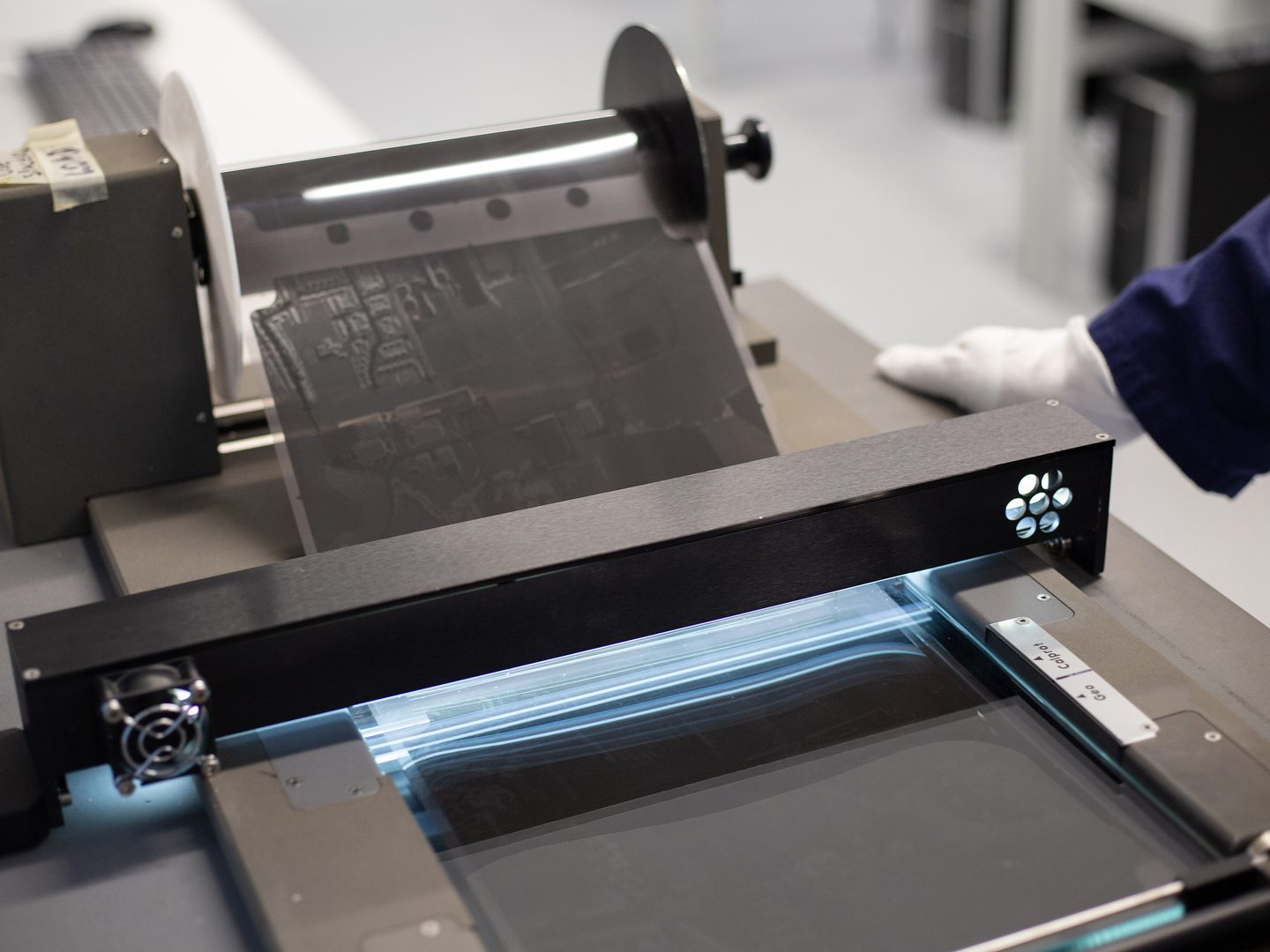

Vexcel Ultrascan 5000 AFR

The Vexcel workstation creates geometrically accurate digital images from aerial film and prints. Its strength is in scanning at micron-level detail, capturing colour and tone, distances and angles. Designed to automatically digitise aerial film in roll format, the Ultrascan can also accept cut frames and prints (up to 240 mm sq).

NCAP operates 15 Vexcel AFR workstations.

Suitable For Scanning

  • Modern aerial film

Images Produced For

  • Map making
  • Creating 3D terrain models
  • Land change analysis
  • Map-ready aerial images
Specifications
Optical resolution Up to 7μm
Scan area 280mm x 260mm
Geometric RMS Range Better than 2μm
Vexcel Ultrascan 5000 AFR
